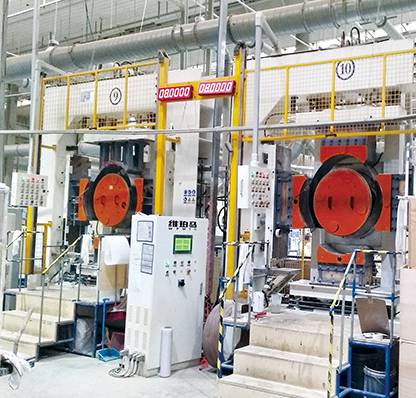

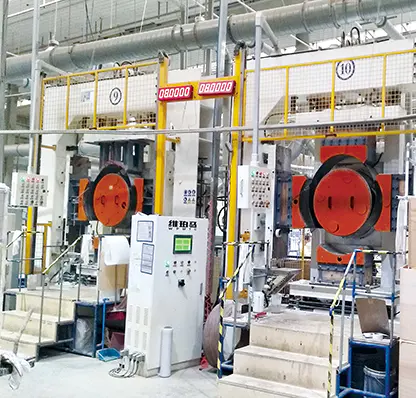

FOUR DIRECTION HE(RF) HOT PRESS MACHINE
FOUR DIRECTION HE(RF) HOT PRESS MACHINE
The high frequency hot press machine series make full use of wooden mould,which fall into a pattern with HF heating,and widely used in the field of musical instrument,shoes industry,decoration,forestry and so on.Besides,our company manufacture various non-standard equipment in accordance with your requirment.

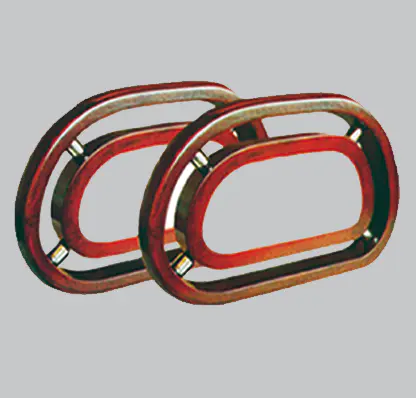

Bend wood armrest, bend wood shelf,teapot, bamboo tread,and panel furniture headboard,box spring,drawer,arc door.
Easy to operate / Uniform heating / Rapid shaping / Small rebound
Adopt wood mould, suitable for various innovation;One-direction,three direct and multi-direction hydraulic press combined flexibly; meets different requirements;One HF generator can share multiple hot presses;Omall working area and low labor intensity,Environmental protection. no boiler, ash free and smog free.
| Product type | WPMYJ-160SI |
| Vertical pressure(t) | 40*2 |
| Size pf upper and lower workbench(mm) | 1400*420 |
| Max.Range between upper and lower workbench(mm) | 2000 |
| Total pressure(t) | 160 |
| Vertical oil cylinder stroke(mm) | 400 |
| Product type | WPMYJ-160SI |
| Horizontal pressure(t) | 40*2 |
| Size of the side workbench(mm) | 1400*420 |
| Max.Range between left and right workbench(mm) | 2000 |
| Heating method | Electric heating/high frequency heating can be selected |
| Horizontal oil cylinder stroke(mm) | 400 |
